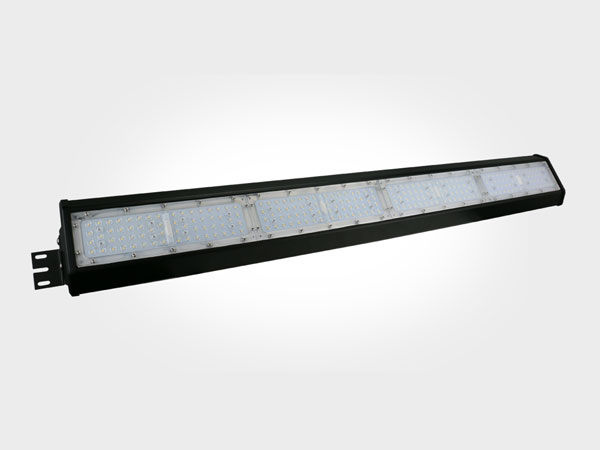

- linear high bay light 50w 100w 150w 200w
- 【Brief】：
1. Waterproof IP65 linear high bay light
2. linear high bay 50W 100W 150W 200W.
3. high lumen 130-140lm/w, 5 Years warranty
4. Mean well driver and Edison led chip.
- 【Series】：LED LIGHTING
Specification of 50W 100W 150W 200W:
| Part No. | Watt | LED type | Size | Voltage | Beam angle | Lumen (LM) | Color | Driver | IP Rate | N.G. |
| VL-LHB50W | 50W | Edison SMD3030 | 280*122mm |
AC90-277V 50-60HZ |
60° 90° 30x70° 70x145° 80x150° |
6500-7000LM | White 2700-6500k | Mean Well | IP65 | 2.32KG |
| VL-LHB100W | 100W | 500*122mm | 13000-14000LM | Mean well | 3.90KG | |||||
| VL-LHB150W | 150W | 788*122mm | 19500-21000LM | Mean Well | 5.27KG | |||||
| VL-LHB200W | 200W | 1030*122mm | 26000-28000LM | Mean well | 6.64KG |
Design advantages:
1, Innovative design with good looking.
2, The rugged housing, special surface treatment to resist Pressure/ wear/ corrosion, always
like new.
3, High thermal conductive extruded aluminum has a good heat dissipation and prolong the
lifespan of whole light.
4, 60° , 90°, 30x70°, 70x145°, 80x150° generating rectangular lighting pattern. It's suitable for
height ceiling and warehouse, Shelves and aisles have adequate illumination.
5, Adopt high quality Mean Well Driver and Edison LED Chip, small light decay, long
service life.
6, CRI>80Ra, PF>0.95. High performance.
7, IP65 design, suitable for indoor and outdoor.
8, One Pare of 2m suspension cables and a 1.5m AC power cord with plug are included
for easy installation. Adjustable ceiling mount brackets are also available as accessories.
Installation:
Application:
1. Workshop, Warehouse, Grocery and Storeroom
2. Bus Station, Airport, Railway Station, Hospital and Gymnasiums
3. Parking Lot, Garage, Gas Station
4. Greenhouse Cultivation and other Canopy
