Accessories of heating system

Model NO.	Picture	Product      name	Product description

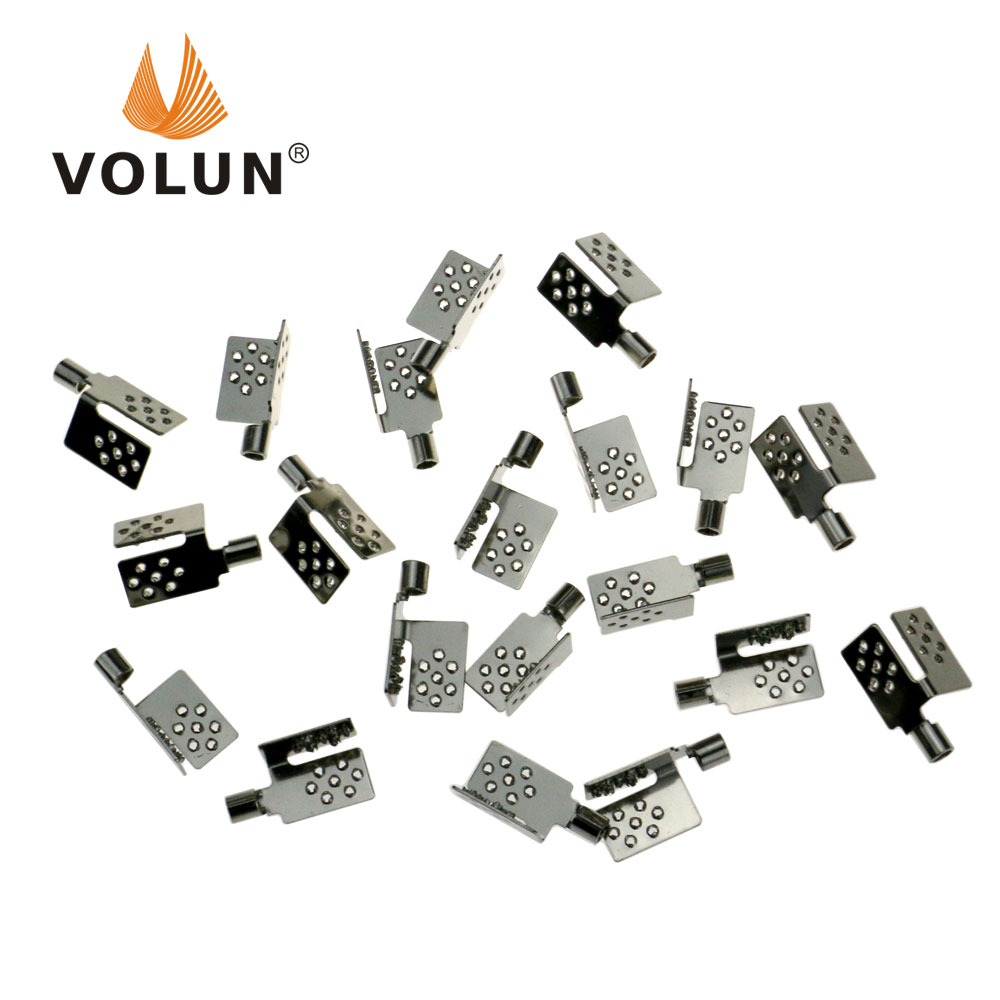

HGT-Clip		Clip	Copper material, 1000pcs /Bag,3KG
HGT-Plier		Plier	Special crimping pliers,W60,0.7KG

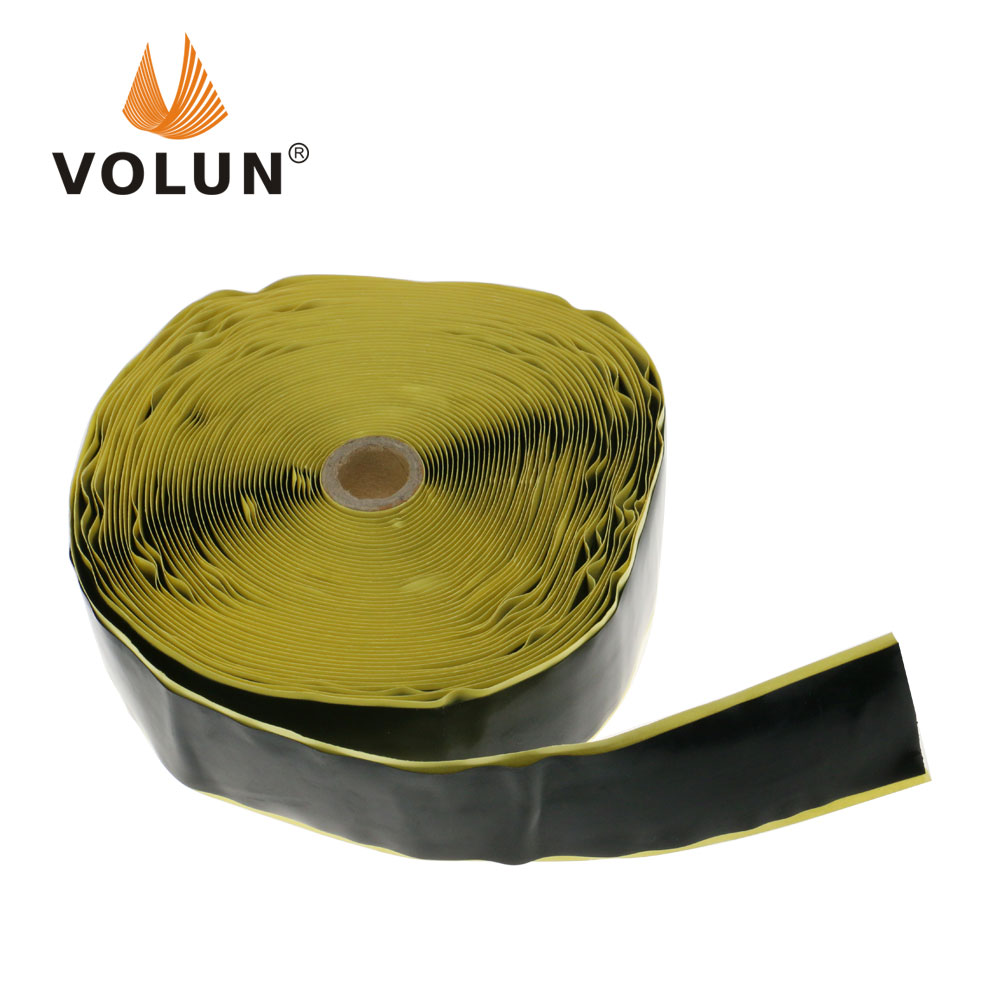

HGT-IT01		Insulation Tap	20M/Roll,2.35KG,Width 5.3cm,Thickness 1.5mm, Package  size 23*23* 7cm

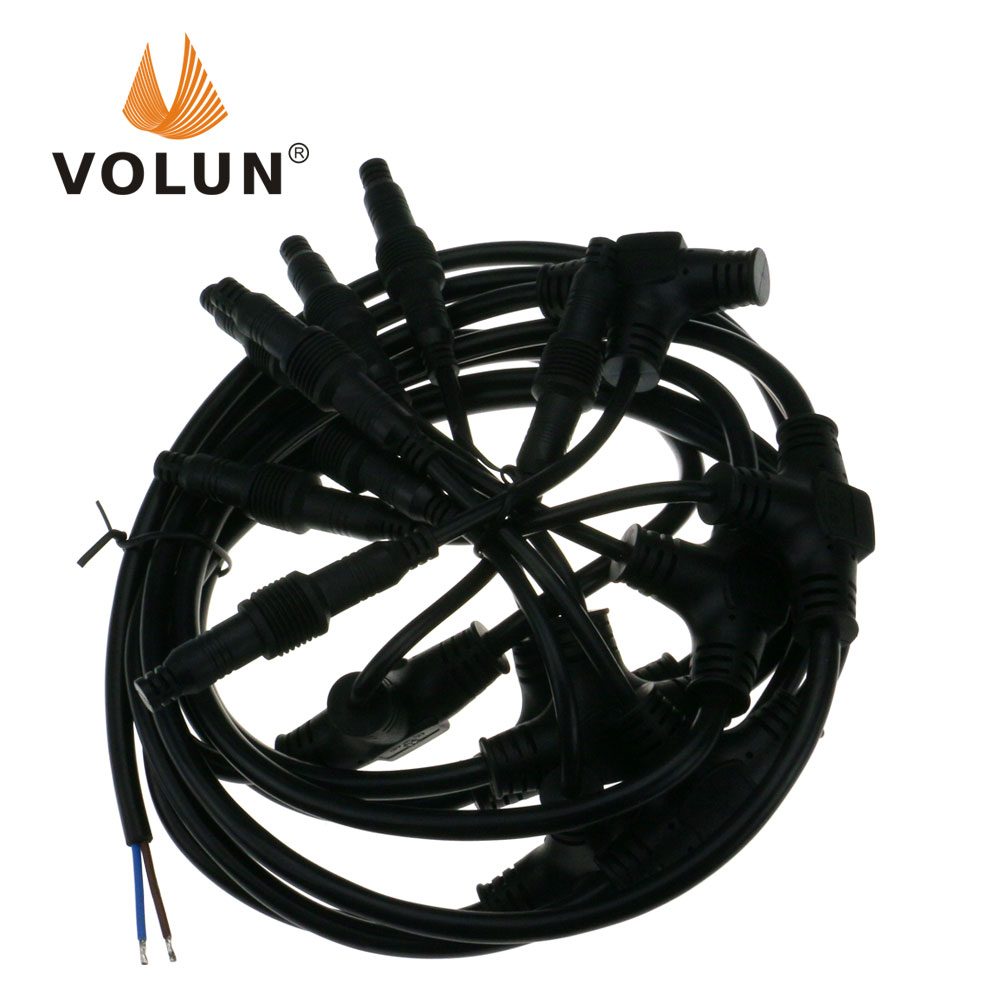

HGT-CW-001		Waterproof Connection Wire	Pattern "T" Shape power cord and connect wiring. waterproof, fireproof, strong acid and alkali resistant, 50years without aging,Package  size 48*31* 24cm,11KG/Carton,48cm per pair, 20 pieces/carton,7 heads per pair

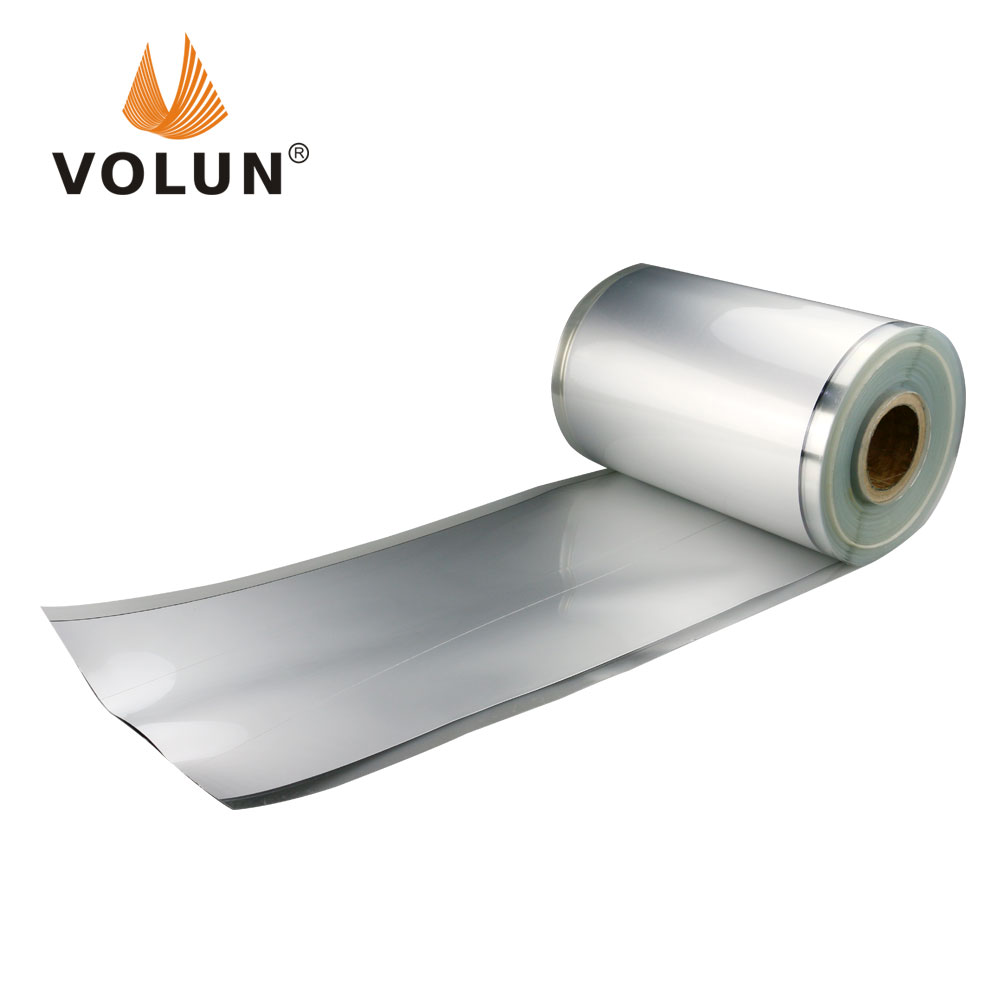

HGT-PB-350		Protective Bag (US$/per square)	Size:0.35*100m (1 Roll), infrared reflection, waterproof, fireproof, Anti-leakage, Anti-puncture, uniform thermal conductivity and Shielding eletromagnetic radiation

Use insulated waterproof mastic and electrical tape for all copper cards for insulation and waterproofing. The clay needs to completely cover the copper card and its width is at least 1cm wider than the copper card.

At the installation site of each copper card, firstly use cement to insulate it, and then use an electrical tape to paste the cement. Electrical tape must be covered with insulating cement. The insulating cement must be flat and do not leave bubbles.

The rear bus bar of the electrothermal film is also waterproofed with cement, and no tape is used because the adhesive force of the tape is reduced when heated. The cement at the tail of the electrothermal film is at least 1 cm wider than the copper foil of the electrothermal film.

The cut electrothermal film is put into an aluminum foil bag, and the ground wire of the electrothermal film is fixed to the end of the aluminum foil bag using a clip and the insulating cement is stuck. The ground clamp is located at 1/4 of the width of the aluminum foil bag (not the middle), so it is easy to reach the arm and operate the electric heating film.
