- Underfloor heating film
- 【Brief】：
* 99.69% high heat conversion
* Zero power attenuation, long lifespan over 50 years
* ECO-friendly, dust-free and non-pollution
* Smart switch control
* High insulation 3750V
* Far-infrared ray radiant healthy care
* 10 years warranty for Flexible Floor Heating Film
* Core Technology, patent design, IPX7 waterproof
- 【Series】：Heating film system

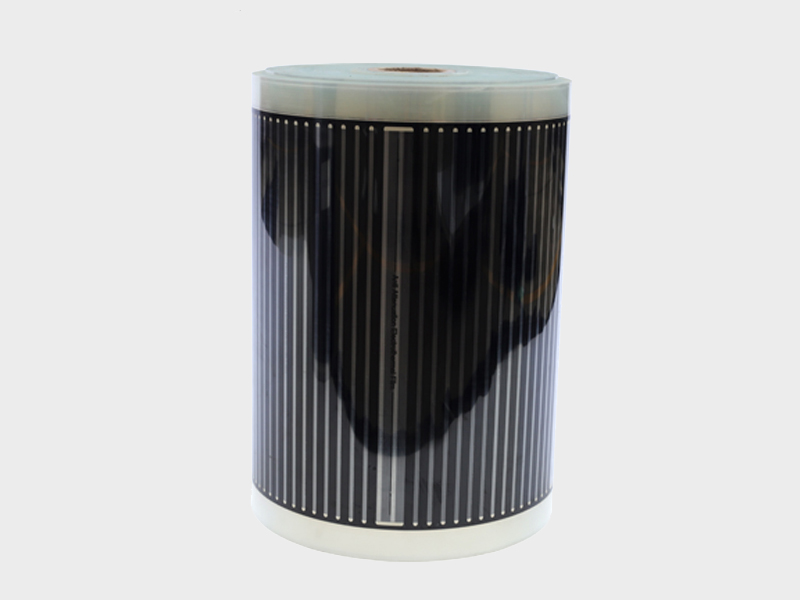

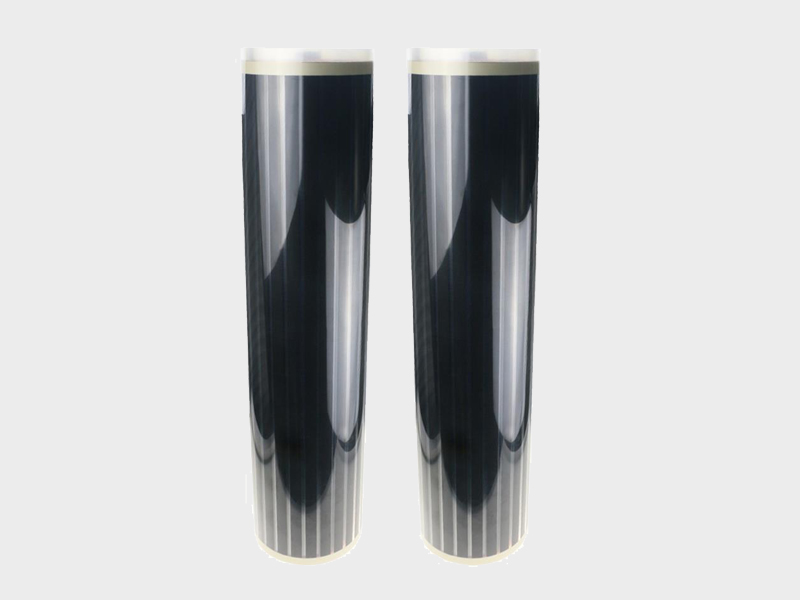

VOLUN Underfloor Heating Film Description:
| Item | Underfloor Heating Film | |||
| Item No. | VOLUN-WM-180-P30 |
VOLUN-WM-140-P50 |
VOLUN-WM-240-P80 |
VOLUN-WM-240-P100 |
| Size | Width 30cm | Width 50cm | Width 80cm | Width 100cm |
| Power | 220W/sqm | 140W/sqm, 220W/sqm | 240W/sqm | 240W/sqm |
| Voltages | AC 220V | |||
| Warranty | 10 years | |||
| Load current | 1000W per linear length | |||
| Working Temperature | -40℃~60℃ | |||
| Installed Power | 60~100w per square meters | |||
| Certificate | CE ,RoHs | |||
Besides of above heating film, we can provide 24V 36V heating film, please contact to get information. Thanks
VOLUN Patent Protective Bag:
VOLUN patent shielded and reflective system have five major functions of reflected infrared,uniform thermal conductivity, shielding electromagnetic radiation, safe grounding, multiple protection. Effectively solve the electric heating film local overheating,leakage protection switch tripping, electric film bulging and other common problems, to ensure the safe and stable operation of electric film.
How to connection?
How to Installation:
Application:
Flexible Floor Heating Film applied to primary heating source in the following industries and applications:
* Residential Primary and Supplemental Heating
* Commercial, Industrial, Exterior De Icing
* Healthcare, Pet and Hobby, Agricultural, OEM Projects, etc.
